Guided ZAP Scans: Faster CI/CD Feedback Using Static Analysis

Posted Friday March 27, 2026 1528 Words

This post from the Seqra Team describes an approach that uses static analysis findings to guide ZAP’s active scans toward the most relevant endpoints. The result is a faster scanning mode suited for CI/CD pipelines, built on top of ZAP’s Automation Framework.

TL;DR

ZAP’s comprehensive scanning is thorough by design — but for CI/CD pipelines, you need faster feedback on just the endpoints that changed or look risky
Dataflow-aware SAST tools confirm that user input reaches dangerous operations — but can’t determine whether a specific input actually exploits that flow at runtime
When SAST tools output endpoint paths, HTTP methods, and vulnerability classifications, they can serve as input for targeted DAST scanning
Using this approach with our static analyzer OpenTaint, we achieved an 8x speedup with the same detection accuracy on the OWASP Benchmark
This is an additional scanning mode — you should still run full ZAP scans periodically for complete coverage
Currently works with Java and Kotlin Spring and Servlet applications
You can try the open-source integration yourself (see Try It Yourself section)

The Problem

Running full active scans in CI/CD is a familiar tradeoff: comprehensive coverage takes time, and scoping scans manually means guessing which endpoints matter.

SAST tools solve the speed problem — they analyze code in minutes and find most vulnerabilities. But even dataflow-aware SAST has a gap: it can confirm that user input reaches a dangerous operation — a real data flow exists — but it can’t determine whether a specific input actually triggers exploitation at runtime.

SAST and DAST tools have complementary knowledge. SAST knows where vulnerabilities might exist — the exact endpoints and code paths with risky behavior. DAST knows how to validate they’re exploitable — by crafting attacks and observing runtime behavior. But they don’t typically communicate.

The idea is straightforward: use SAST to point DAST toward the most relevant endpoints and use DAST to validate which findings are real — a focused scanning mode for fast CI/CD feedback.

What Makes This Work: DAST-Friendly SAST

For SAST to guide DAST effectively, the SAST tool must speak DAST’s language. Most SAST tools report findings in terms of source files, line numbers, and code snippets — useful for developers, but meaningless to a DAST scanner that operates in a black-box way at the protocol level.

Unlike pattern-matching scanners that report potential issues based on code syntax, a dataflow-aware SAST tool reports data flow traces — from user-controlled input to a dangerous sink. What remains uncertain is exploitability: whether an attacker can craft an input that traverses that flow and triggers the vulnerability. That’s exactly what DAST validates.

What DAST tools need is different:

The exact urls where vulnerabilities exist (e.g., /api/users/{id})
Vulnerability classifications (CWE IDs) to determine which scan rules to apply

We call this DAST-friendly SAST — static analysis designed to output information that dynamic scanners can directly consume. Any SAST tool that provides these two pieces of information can enable targeted DAST scanning.

SARIF is a JSON-based standard for security findings that can carry all of this data along with additional metadata, making it ideal for tool-to-tool communication.

How It Works

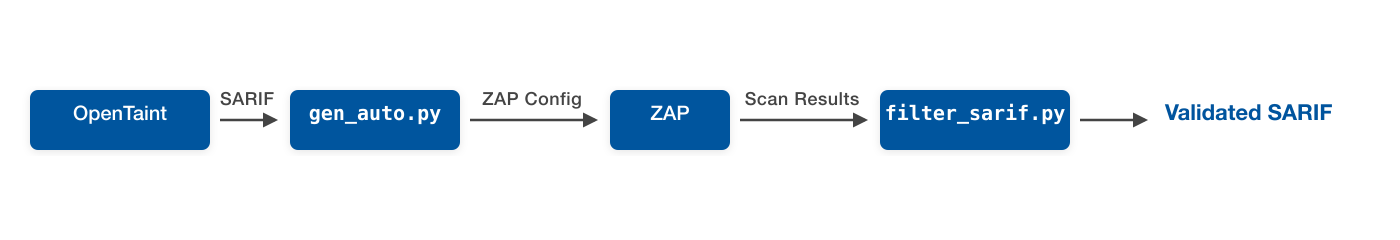

The flow

OpenTaint is an open-source taint analysis engine. It performs inter-procedural dataflow tracking, tracing untrusted data from HTTP inputs to dangerous sinks — across endpoints, persistence layers, aliased references, and async code. Its SARIF output includes endpoint paths, HTTP methods, and CWE classifications: exactly the DAST-friendly output described above.

The integration follows four steps:

OpenTaint scans your application and produces a SARIF report containing endpoints and CWE classifications
The gen_auto.py script parses the SARIF and a template, extracts CWE-to-endpoint mappings, and generates a targeted ZAP configuration with isolated contexts for each CWE category
ZAP executes the generated automation plan, running active scans with CWE-specific policies only against the filtered endpoints where those vulnerabilities were detected
The filter_sarif.py script cross-references the original SARIF against ZAP’s findings and filters it to retain only results that ZAP successfully validated

The template is a standard ZAP Automation Framework YAML file with configuration and a few requirements:

At least one context in env.contexts that will be used for authentication and optionally endpoints filtering via urls, includePaths, excludePaths
An openapi or graphql job for populating ZAP tree with urls
CWE-specific scan policies using the naming format policy-CWE-{number}. Each policy defines which ZAP scan rules to enable and their strength or threshold settings. You can extend coverage by adding more CWE policies to the template.

Instead of testing every endpoint with every rule, you test only relevant combinations — achieving the same detection accuracy in a fraction of the time.

Benchmark Results

To validate this approach, we used OWASP BenchmarkJava, a test suite specifically designed to measure static and dynamic analyzers quality. It contains real, exploitable vulnerabilities in a runnable web application, making it a fair test for any security tool.

We focused on three CWE categories: XSS (CWE-79), SQL Injection (CWE-89), and Command Injection (CWE-78) — among the most common web application vulnerabilities.

We compared the guided approach (ZAP + OpenTaint) against standalone ZAP OpenAPI scans at three strength levels (Medium, High, Insane). For the guided approach, we used Insane strength to ensure our approach can help in the most critical case (the best power at the worst time cost).

Approach	TP	FP	TN	FN	TPR	FPR	Requests	Time
ZAP Medium	368	17	549	276	0.57	0.03	2.4M	26 min
ZAP High	374	22	544	270	0.58	0.04	3.7M	42 min
ZAP Insane	376	45	521	268	0.58	0.08	5.3M	58 min
ZAP + OpenTaint	376	26	540	268	0.58	0.05	0.7M	7 min

Reading the table: TP = true positives (real vulnerabilities found), FP = false positives (false alarms), TN = true negatives (correctly ignored), FN = false negatives (missed vulnerabilities). TPR = true positive rate (detection rate, higher is better), FPR = false positive rate (noise level, lower is better). Requests = total HTTP requests sent during scanning.

Key takeaways of ZAP + OpenTaint and ZAP Insane comparison:

The integration achieves the same detection accuracy as ZAP Insane (TPR 0.58)
The integration produces fewer false positives (FPR of 0.05 vs. 0.08)
The integration sends 87% fewer requests (0.7M vs. 5.3M) and allows the guided scanning to eliminate unnecessary work
The integration is 8x faster (7 minutes vs. 58 minutes), making DAST more practical for CI/CD pipelines

CI/CD Integration

The GitHub Action provides two scanning modes for different CI/CD scenarios. Full mode scans the entire application and works well for single branch validations. Differential mode is designed for pull requests — it scans both the PR branch and the base branch, compares their SARIF fingerprints, and validates only the new or changed findings with ZAP.

To demonstrate the integration in a real CI/CD environment, we used java-spring-demo — a Spring Boot application with intentionally vulnerable endpoints covering various CWE categories. Pull request runs both scanning modes alongside a full ZAP scan for comparison:

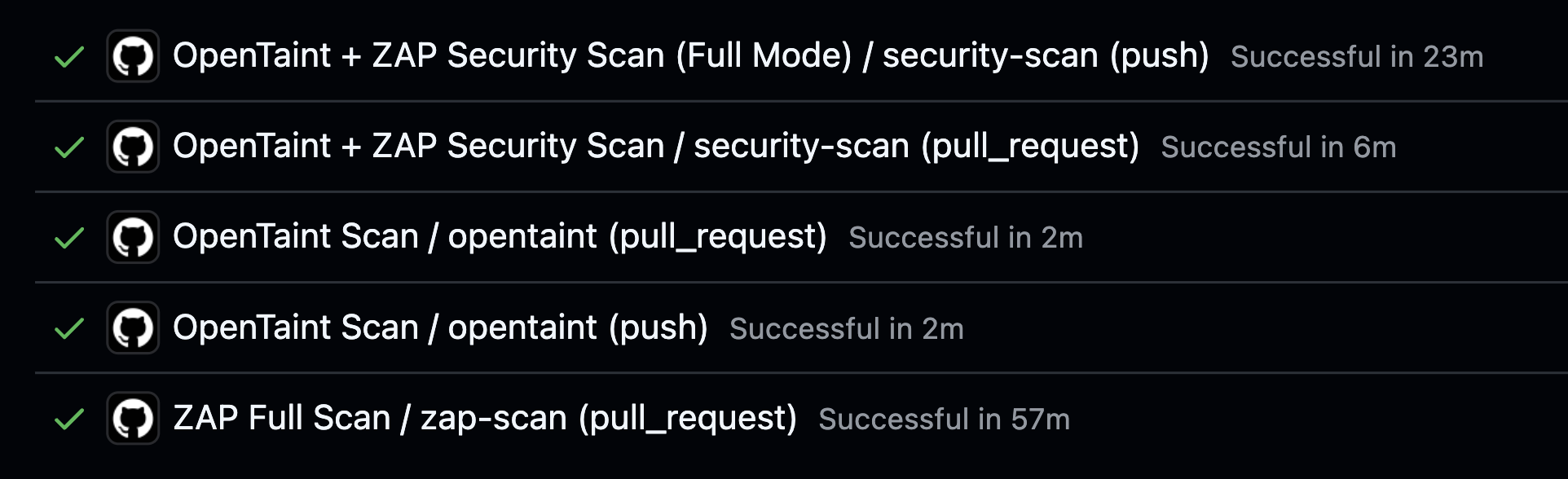

Workflow comparison

The differential mode provides an 8x speedup compared to full ZAP scanning, making security validation practical for every pull request without blocking development.

The action automatically uploads validated vulnerabilities to GitHub Security alerts. Each alert includes a full code trace and vulnerability description, making it easy to fix.

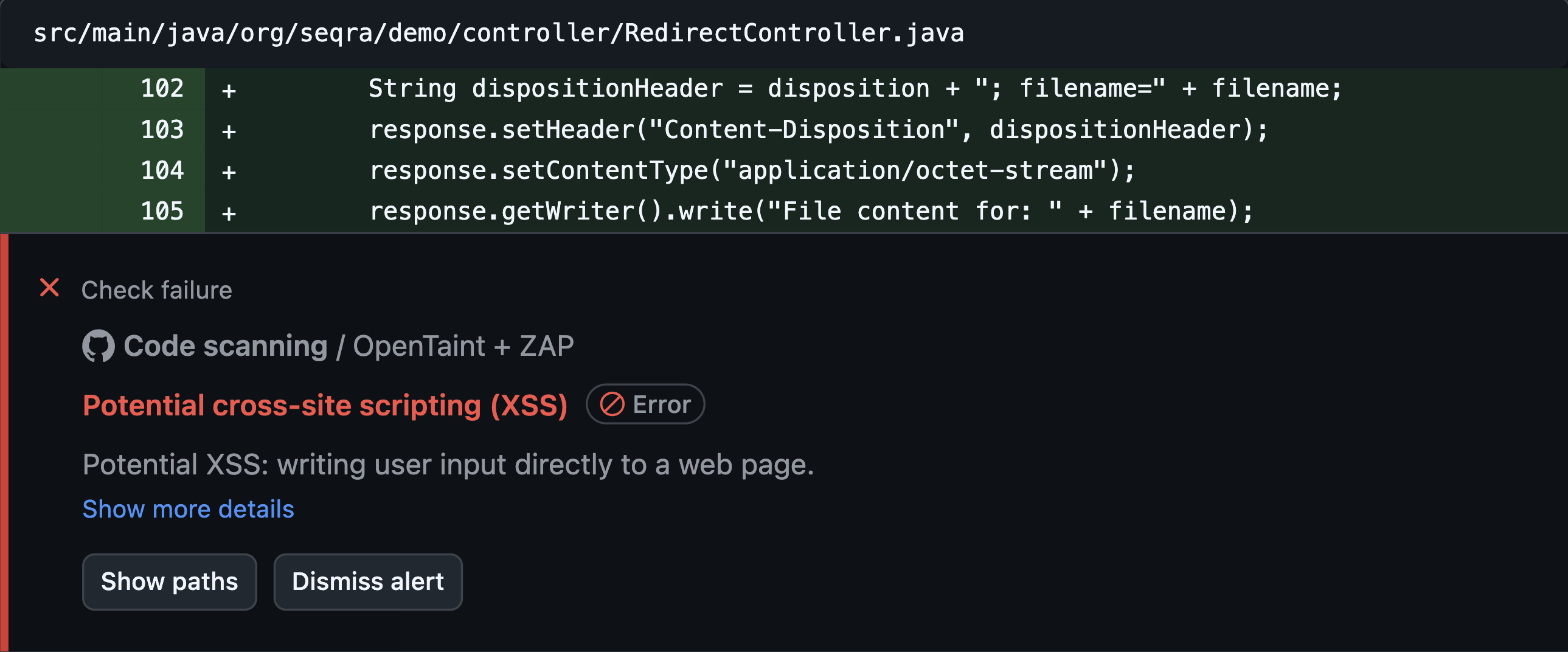

Security alert

Artifacts also contain the filtered and original SARIF reports, ZAP’s detailed scan results, and generated YAML. These artifacts are useful for deeper analysis or integration with other security tools.

Limitations and Considerations

An OpenAPI specification is required to map endpoints
Currently supports only Java and Kotlin web applications with the Spring framework due to OpenTaint’s JVM bytecode analysis
The validation quality depends on the accuracy of both your SAST and DAST tool accuracy
This integration is designed for fast, targeted validation—comprehensive DAST scans are still needed to find vulnerabilities SAST might miss

Try It Yourself

Our GitHub Action automates the entire workflow — from OpenTaint analysis through ZAP scanning to validated results, you only need a running app url. Here’s a minimal setup you can add to your workflow:

- name: Run security scan
  uses: seqra/opentaint/github/zap@github/v0
  with:
    mode: 'differential'  # or 'full' for single branch
    target: 'http://localhost:8080'
    template: 'template.yaml'

The action handles OpenTaint installation, SARIF generation, ZAP configuration, scanning, and result filtering automatically. It uploads validated vulnerabilities to GitHub Security alerts and provides detailed artifacts for further analysis. For further information see action and workflow example in java-spring-demo.

Conclusion

This approach lets SAST and DAST work in a symbiotic way: SAST provides the intelligence about where to look, ZAP provides the proof of exploitability. The result is a focused scanning mode that fits into CI/CD, complementing the full scans you already run.

The pattern is generalizable. Any SAST tool that provides endpoint-level findings with CWE classifications can enable this kind of guided scanning — not just with ZAP, but with any DAST tool. If you’re building or evaluating SAST tools, consider DAST-consumable output as a design criterion.

Our OpenTaint integration is one implementation of this idea, and it’s fully open source. We’d welcome feedback from the ZAP community — let us know how it works for you or what you’d like to see improved.
